DTL-4轮辐式传感器
产品简介:
DTL-4轮辐式低外形传感器,弹性体采用不锈钢制作,抗侧向能力强,密封采用氩弧焊接,防潮、防尘,适应在恶劣的环境中工作,适用于制作各种料罐秤,各种压力称重设备。

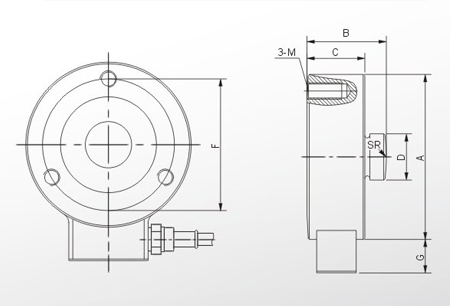

量程 | 尺寸mm | |||||||
t | A | B | C | D | F | G | SR | M |
0.5~15Se | 82.0 | 44.0 | 31.0 | 22.0 | 70.0 | 20.0 | 120.0 | M8 |
15~30Se | 100.0 | 48.5 | 35.0 | 28.0 | 80.0 | 20.0 | 120.0 | M10 |
30 | 126.0 | 54.0 | 40.0 | 35.0 | 90.0 | 20.0 | 120.0 | M12 |
主 要 技 术 指 标Main Description | ||
测量范围Capacity | 0.5~15、30 | kg |
输出灵敏度Rated Output | 2.0±0.010 | mV/V |
非线性Linear | ±0.05 | %F.S |
滞后Hysteresis | ±0.05 | %F.S |
重复性Reapeatability | ±0.03 | %F.S |
蠕变Creep | ±0.02 | %F.S |
零点输出Zero Balance | ≤±1.0 | %F.S |
温度补偿范围 Conpensated Temperature Range | 室温~+60 | ℃ |
零点温度补偿系数Temperature Effect On Zero | ±0.02 | %F.S/10 ℃ |
额定输出温度系数 Temperature Effect On Output | ±0.02 | %F.S/10 ℃ |
供桥电压 Excitation Voltage | 10V | AC/DC |
绝缘电阻Insulation Resistence | ≥5000 | MΩ/100VDC |
输入电阻 Input Resistence | 750±10 | Ω |
输出电阻Output Resistence | 700±5 | Ω |
允许过载系数Safe Overload | 120 | %F.S |
电缆连接方式Cable Connection | 信号输出Singal Output: 黄:Yellow (+) 黑:Black (-) | |
供桥电压Excitation Voltage: 红Red: (+) 绿Green:(-) |
